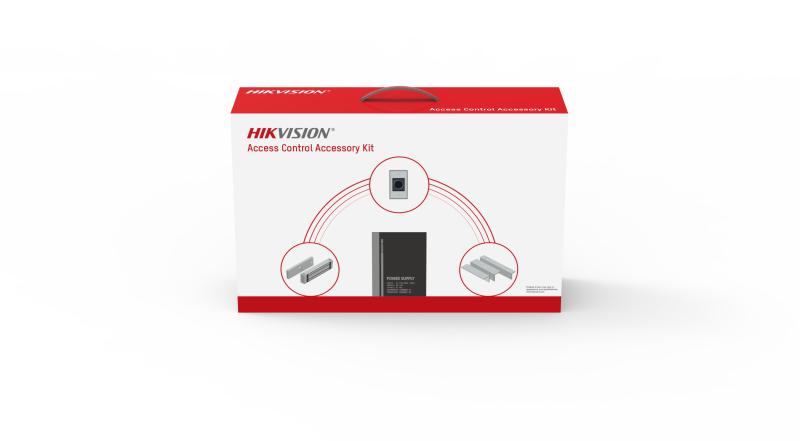

DS-KAS-7M01

Power supply Input: 110 to 230 VAC Output: 12 VDC, 24 W Momentary current: 5 A Persistent current: 5 A Support backup battery charging and discharging Button Stainless steel panel LED indicator Magnetic lock Lock dimension: L * W * H: 250 mm * 28 mm * 48 mm (9.8" * 1.1" * 1.9") Holding force: Max. 272 kg (600 Lbs) Lock bracket Suitable for magnetic lock L bracket dimensions: L * W * H: 250 mm * 46 mm *30 mm (9.8" * 1.8" *1.2") Z bracket dimensions: L * W * H: 180 mm * 47 mm * 47 mm (7.1" * 1.9" * 1.9") View Less View more
